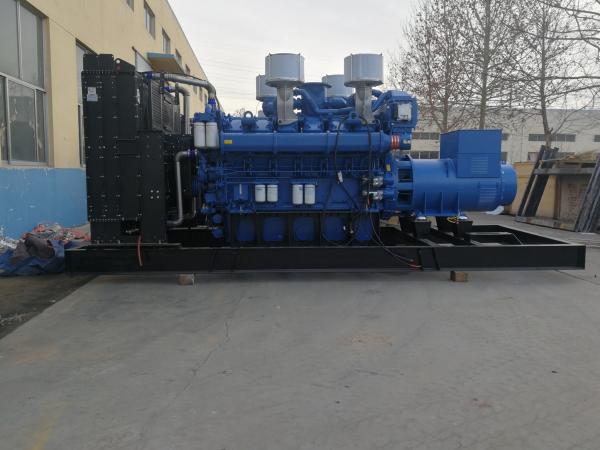

Water Cooled Yuchai Diesel Generator 1200KW

Weifang Fengmao Power Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Water Cooled Yuchai Diesel Generator 1200KW from wholesalers

    Buy cheap Water Cooled Yuchai Diesel Generator 1200KW from wholesalers
    • Buy cheap Water Cooled Yuchai Diesel Generator 1200KW from wholesalers
    • Buy cheap Water Cooled Yuchai Diesel Generator 1200KW from wholesalers

    Water Cooled Yuchai Diesel Generator 1200KW

    Ask Lasest Price
    Brand Name : YUCHAI
    Model Number : 1200kw
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100
    • Product Details
    • Company Profile

    Water Cooled Yuchai Diesel Generator 1200KW

    Water Cooling Yuchai Diesel Generator - Designed for Fixed Installation 1200KW

    Product Description:

    Yuchai Diesel Generator Sets are designed for reliable power generation in industrial, commercial and residential applications. With a variety of customization options available, Yuchai provides efficient and cost-effective solutions for your power needs. The generator is powered by a reliable diesel engine and features a water cooling system for superior cooling performance. It has an electric start and an AC three-phase output type. Yuchai is renowned for its soundproof generator sets, which are designed to reduce noise levels for improved comfort and safety. Yuchai is the trusted choice for reliable power supply when you need it most.

    Features:

    • Product Name: Yuchai Diesel Generator
    • Installation Method: Fixed
    • Conditions of Use: Land Use
    • Cooling Method: Water Cooling
    • Type: Self-Starting Diesel Generator
    • Output Type: AC Three Phase
    • Silent Generator
    • Diesel Generator Set
    • Electrical Generator

    Technical Parameters:

    Property Value
    Type: Self-Starting Diesel Generator
    Cooling Method: Water Cooling
    Stroke: Four Stroke
    Start: Electric Start
    Output Type: AC Three Phase
    Speed: Speed
    HS Code: 8502110000
    Customization: Available
    Installation Method: Fixed
    Conditions of Use: Land Use
    Silent Generator: Yes
    Generator Price: Negotiable
    Yuchai Diesel Generator: Yes
    Diesel Generator: Yes

    Applications:

    Yuchai Diesel Generator is a brand name of Yuchai, with Model Number of 30-500kw, and its Place of Origin is CHINA. The Trademark is FM, and Customization is available. The Speed of Yuchai Diesel Generator is reliable, and Output Type is AC Three Phase. The Generator or Generating Set is well-packed in a Wood Box for transportation.

    Yuchai Diesel Generator is widely used in various industries, such as petroleum, chemical, communication, shipbuilding, construction, mining, medical, agriculture, catering, power station, etc. It is also suitable for all kinds of occasions, like factories, hotels, hospitals, buildings, public places, and even outdoor occasions. Yuchai Diesel Generator is a perfect choice for enterprises, institutions, and other units that need to use stable generating sets.

    Yuchai Diesel Generator is known for its quality, reliability and efficiency. It is a reliable and economic choice for users to use Yuchai Diesel Generator to reduce power costs. Yuchai Diesel Generator also helps to reduce the risk of power outages and provide a stable energy supply. Yuchai Diesel Generator is an ideal choice for many occasions.

    Customization:

    Yuchai Diesel Generator is a great choice when it comes to silent generator, generator diesel, and portable generator. The brand name is YUCHAI, with model number 30-500kw. This product is made in CHINA and is a self-starting diesel generator with fixed installation. It is also available for customization with the speed to be specified. This product is classified under the HS Code 8502110000.

    Support and Services:

    Yuchai Diesel Generator technical support and service includes:

    • 24/7 technical support with certified technicians
    • On-site service and maintenance
    • Factory-authorized parts and accessories
    • Preventative maintenance programs
    • Warranty coverage
    • On-site training and product demonstrations

    Packing and Shipping:

    Yuchai Diesel Generator Packaging and Shipping:

    • The generator is securely packaged in a wooden crate for shipping.
    • The shipping container is designed to protect the generator from the elements, moisture, and shock.
    • The generator is shipped via air or sea, depending on the customer’s preference.
    • The generator is shipped with the necessary installation and operating instructions.
    • The generator is also shipped with the necessary safety and maintenance tools.

    FAQ:

    Q: What is the Brand Name of Yuchai Diesel Generator?
    A: The Brand Name of the Yuchai Diesel Generator is YUCHAI.
    Q: What is the Model Number of Yuchai Diesel Generator?
    A: The Model Number of the Yuchai Diesel Generator is 30-500kw.
    Q: Where is Yuchai Diesel Generator from?
    A: The Yuchai Diesel Generator is from CHINA.
    Q: Does Yuchai Diesel Generator have a noise reduction system?
    A: Yes, Yuchai Diesel Generator is equipped with a noise reduction system.
    Q: Does Yuchai Diesel Generator have a fuel saving system?
    A: Yes, Yuchai Diesel Generator is equipped with a fuel saving system.

    Basic Info.

    Model NO.
    FMY1200GF
    Conditions of Use
    Land Use
    Usage
    Common Units, Standby Unit, Emergency Crew
    Landuse Type of Unit
    Ordinary
    Excitation Mode
    AC Rotating Exciter
    Start
    Electric Start
    Phase
    Three Phase/Single Phase
    Optional
    Silent/ATS/Trailer
    Alternator
    Stamford Brushless
    Diesel Engine
    Yuchai Engine
    Transport Package
    Wood Box
    Specification
    1600*600*1100
    Trademark
    FM
    Origin
    China
    HS Code
    8502110000
    Production Capacity
    1000
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Engine Features
    Guangxi yuchai engine USES the German FEV technology developed products. The body and cylinder head are made of alloy cast iron, with high degree of reinforcement, with integral forging steel crankshaft, sliding bearing, small volume and light weight, high reliability, and the overhaul period is more than 12000 hours. The unit has the characteristics of compact structure, large power reserve, high reliability and good speed regulation.
    Terminal unit complete power 20w-1200kw

    Introduction to Yuchai engine
    manufacturers China, Guangxi yuchai machine
    model YC4FA55Z-D20
    rated power 30KW/37.5KVA
    Overload power 35KW/43.8KVA
    Number of cylinders/valves 4/8
    Cylinder diameter 96mm*103mm
    compression ratio 17:1
    Total piston displacement 5
    rated speed 1500r/min
    idle speed 600±50r/min
    debug mode Mechanical/electronic
    type of cooling Forced water circulation
    Oil sump capacity 8L
    fuel consumption rate 198g/kw·h±3%
    1. Generator parameter
    The nonlinear load voltage waveform is less distorted
    Strong short circuit endurance
    The stator winding is impregnated by vacuum pressure and covered with dampproof epoxy insulating paint
    The rotor and exciter are treated with high temperature resistant insulating resin paint, which is more suitable for use in bad environment
    H grade insulation
    The rotor silicon steel plate is mechanically tightened
    Advanced grease seal long life bearing


    remarks:According to the user's demand, the generator can choose wuxi Stanford, Shanghai marathon, jiangsu pilot and other famous brands.

    Yuchai Series Generator Specs List
    model power
    KW KVA
    electricity
    A
    Diesel engine model number of cylinders Cylinder diameter
    mm
    lubricating oil capacity
    L
    oil wear
    g/kw.g
    The unit size
    L×W×H
    The unit weight
    kg
    FM30GF 30 37.5 54 YC4FA40Z-D20 4 96*103 8 215 1500*700*1100 500
    FM40GF 40 50 72 YC4FA55Z-D20 4 96*103 8 215 1500*700*1100 550
    FM50GF 50 62.5 90 YC4FA75L-D20 4 96*103 12 215 1800*800*1300 750
    FM40GF 40 50 72 YC4D60-D21 4 108*115 12 215 1700*800*1300 600
    FM50GF 50 62.5 90 YC4D85Z-D20 4 108*115 12 215 1800*800*1300 800
    FM60GF 60 75 108 YC4D90Z-D21 4 108*115 15 215 1800*800*1300 850
    FM70GF 70 87.5 126 YC4A100Z-D20 4 108*125 16 215 1800*800*1300 900
    FM100GF 100 125 180 YC4A140L-D20 4 108*125 16 215 2100*900*1500 800
    FM90GF 90 112.5 162 YC6B135Z-D20 6 108*125 16 215 2100*900*1500 850
    FM100GF 100 125 180 YC6B155L-D21 6 108*125 16 215 2200*900*1500 950
    FM120GF 120 150 216 YC6B180L-D20 6 108*132 18 215 2200*900*1500 1000
    FM140GF 140 175 252 YC6B205L-D20 6 108*125 18 215 2200*900*1550 1200
    FM150GF 150 187.5 270 YC6A230L-D20 6 108*132 16 195 2500*1000*1600 1400
    FM160GF 160 200 288 YC6A245L-D21 6 108*132 16 195 2500*1000*1600 1500
    FM220GF 220 275 396 YC6MK350L-D20 6 120*145 25 195 2800*1100*1650 2000
    FM250GF 250 312.5 450 YC6MK420L-D20 6 123*145 25 195 3000*1100*1700 2200
    FM300GF 300 375 540 YC6MJ480L-D20 6 131*145 25 195 3200*1200*1700 2600
    FM350GF 350 437.5 630 YC6T550L-D21 6 145*165 50 195 3300*1200*1700 3000
    FM400GF 400 500 720 YC6T600L-D22 6 145*165 50 195 3500*1500*1800 3500
    FM450GF 450 562.5 810 YC6T660L-D20 6 145*165 50 195 3500*1500*1800 3600
    FM500GF 500 625 900 YC6TD780L-D20 6 145*165 50 195 3600*1600*2100 4200
    FM600GF 600 750 1080 YC6TD840L-D20 6 200*210 50 195 3600*1600*2100 4500
    FM650GF 650 812.5 1170 YC6C1020L-D20 6 200*210 180 195 4000*1500*2100 5200
    FM700GF 700 875 1260 YC6C1070L-D20 6 200*210 180 195 4200*1600*2100 5600
    FM800GF 800 1000 1440 YC6C1220L-D20 6 200*210 180 195 4600*1800*2500 7600
    FM880GF 880 1100 1584 YC6C1320L-D20 6 200*210 180 195 5200*2150*2600 8000
    FM1000GF 1000 1250 1800 YC12VC1680L-D20 12 200*210 180 195 5400*2150*2600 8500
    FM1100GF 1100 1375 1980 YC12VC1680L-D20 12 200*210 180 195 5400*2150*2600 8800
    FM1200GF 1200 1500 2160 YC12VC2070L-D20 12 200*210 180 195 5400*2150*2600 9000
    FM1320GF 1320 1650 2376 YC12VC2070L-D20 12 200*210 180 195 5400*2150*2600 10000
    FM1500GF 1500 1875 2700 YC12VC2070L-D20 12 200*210 180 195 5600*2300*2600 12000
    FM1600GF 1600 2000 2880 YC12VC2510L-D20 12 200*210 180 195 5600*2300*2600 12500
    1. The above technical parameters have a speed of 1500RPM, a frequency of 50HZ, a rated voltage of 400/230v, a power factor of 0.8, and a three-phase four-wire connection.
    2. According to customers' demand, the generator can choose famous brands such as Shanghai Stanford, Shanghai marathon, wuxi Stanford, etc.
    3.60HZ generator sets can be customized according to the special needs of customers.
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW
    Water Cooled Yuchai Diesel Generator 1200KW




    Water Cooled Yuchai Diesel Generator 1200KW
    Standard equipment:
    diesel engine
    alternator
    water cooled radiator
    industrial silencer and flexible exhaust hose
    maintenance-free lead-acid starting batteries and battery connect wires
    output circuit breaker
    digital control panel
    steel base frame
